MORPHEE harmonizes
with your test benches
MORPHEE® seamlessly integrates with your automotive testing systems.
The MORPHEE® automation software remains the leading choice for real-time test bench automation in Windows. Since its inception in 1991, MORPHEE® has built 3,500 installations, supporting over 12,000 users and powering 15 million hours of annual testing. Its robust functionality ensures easy adaptation to diverse environments, enabling precise and versatile testing capabilities with the latest technological advancements.
- Simulation in real time with direct interaction with test cell input/output.
- Calibration of ECU parameter based on UUT modeling
Innovative approach

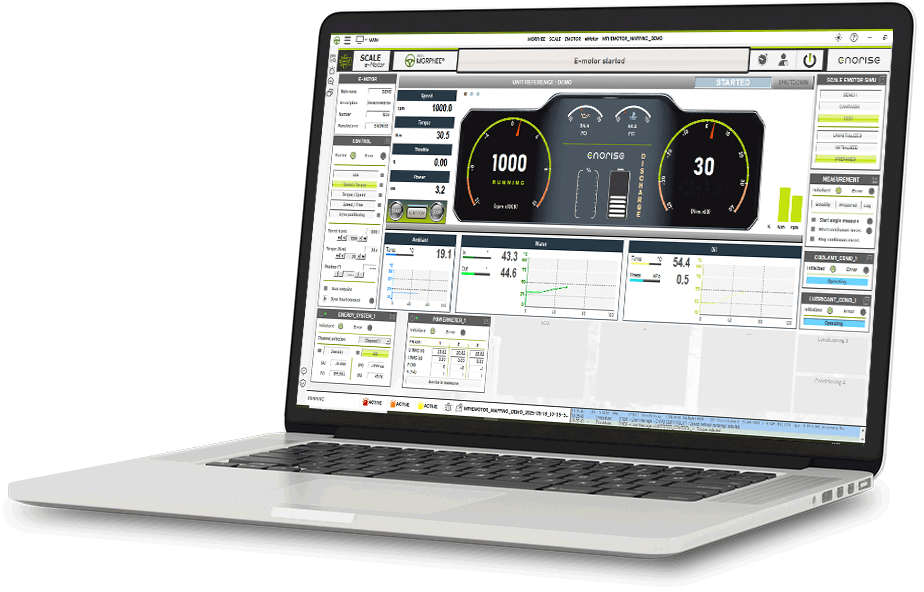

MORPHEE® is a test bench management and monitoring software which provides all basic software functions required to run the following operations in real time:
- Measurement acquisition and storage, either continuous or single-shot
- Rolling data acquisition and post-mortem analysis
- Control of diverse external devices (e.g., analog setpoints, digital commands)
- Parameter monitoring, with multiple safety levels in case of alarms
- Execution of simulation models in real time (e.g., Matlab/Simulink)
- Data-based calculation functions
- Interactive on-screen parameter visualization in various formats
- Seamless integration with xMOD co-simulation and HiL platform characteristics
MORPHEE emissions tests
MORPHEE emissions tests offer the highest level of automation on the market. The test procedure is fully automated, and de-normalization of the cycle is automatic. This is a flexible solution with the option to execute partial as well as complete cycles, calculate emissions during real-time testing and validate driving during the test cycle in real time. It is compatible with trucks, buses and non-road applications.
Benefits:
- Fully automated test procedure
- To develop and certify your engine for European, US and Asian markets
- Compatible with trucks, buses and non-road applications
- Online regulation algorithms (De-normalization - Regression line analysis - Emissions)
- Automatic test reports

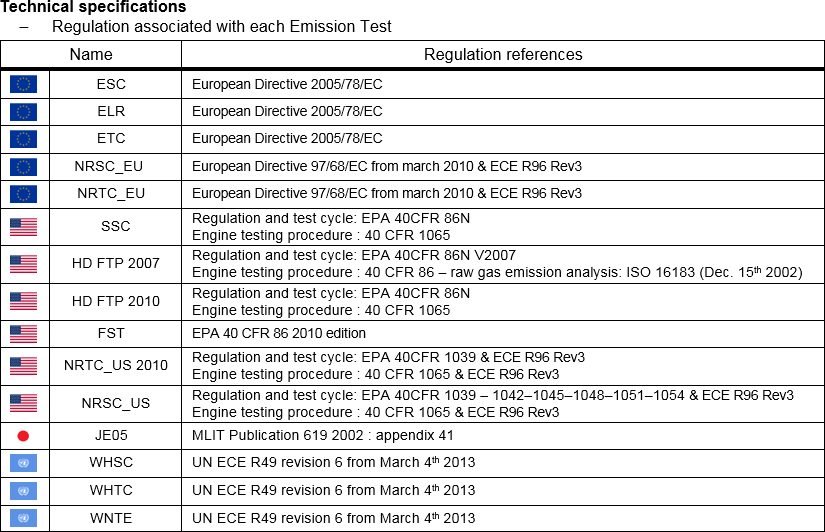

Standards covered by MORPHEE emissions tests:
Driveline dynamometer:
MORPHEE DRIVELINE DYNAMOMETER covers the entire process, from the vehicle arrival to the test report, through to the test itself. The process is fully automated. The application follows the latest standards, including WLTP.
Platform Characteristics:
Dedicated to application development purposes. It can also be used to run Test Cell Simulators or non-real time application, using mainly serial or Ethernet interfaces
The entry level of simple automation, featuring all standard MORPHEE® functions as well as most of interfaces and protocols (including EtherCat). This Edition is not Real-Time (Windows based).
The entry level of hard real time automation, perfectly suitable for most of e-mobility applications, such as Fuel Cells and Battery testing. > 5,000 RT channels @ 2 kHz
Hard real time for all kind of Engine, Transmission or Powertrain test cells, including dedicated automotive protocols and interfaces. > 5,000 RT channels @ 2 kHz
Designed for cutting-edge R&D test cells, with most advanced features for managing parameters of complex units like xCUs and control them dynamically. > 5,000 RT channels @ 2 kHz
Application/use cases:
MORPHEE® harmonizes with your test benches. SCALE is the condensed Software & Testing Solutions knowledge integrated in a central State Flow, which is the optimal way to manage UUT at the test cell in a completely secure way. It also manages all links and acquisitions of any type from SCALE equipment.
SCALE BATTERY:
The essential element of a new transportation area. Battery testing is constantly evolving, and must be responsive.
SCALE E-MOTOR:
Adapt your test benches and working methods to new market trends. E-mobility is becoming ever more widely established.
SCALE ENGINE:
The state of the art for all of your combustion and hybrid engine test benches. From End-Of-Line to a Research & Development solution.
SCALE FUEL CELL:
The new trend for power generation in modern vehicles. SCALE already has solutions for the ideas of tomorrow.
SCALE POWERTRAIN / E-POWERTRAIN:
It is now possible to test the complete powertrain in its conventional, hybrid or electrical configuration. From 2 to 4 outputs.
SCALE VEHICLE:
Whatever the type of propulsion, the complete vehicle test is the last step in the validation process. Preserve the benefits of the previously used SCALE configuration and easily cross-check your results.
