DYNACRAFT™ - Wheels Dynamometers
ENORISE wheels DYNACRAFT are ideal for testing powertrains, axle motors (e-axles) and transmissions under realistic conditions. These dynamometers are used to simulate driving conditions and measure the power and torque transmitted through the wheels, providing vital data for performance optimisation.
Features
- Excellent reliability
- High quality of measurement
- Integrated electrical and mechanical safety monitoring (motor winding and bearings)
- Technology:
- Permanent magnet
- Water cooling
- Torquemeter
- Frequency converter
Specifications
| Rated Power (kW) | Rated Torque (N.m) | Base Speed (rpm) | Max. Speed (rpm) | Inertia (kg.m²) | Voltage (V) | Current (A) | |
| DW200 | 200 | 2,500 | 764 | 3,000 | 0.64 | 400 | 800 |
| DW255 | 259 | 2,810 | 879 | 4,000 | 2.833 | 460 | 425 |
| DW335 | 337 | 4,200 | 767 | 3,500 | 8.880 | 460 | 528 |
| DW360 | 361 | 4,600 | 750 | 3,000 | 7.1 | 460 | 860 |
| DW430 | 420 | 5,200 | 791 | 3,500 | 10.98 | 460 | 671 |
| DW505 | 506 | 5,200 | 929 | 3,500 | 10.98 | 460 | 783 |
Related solutions

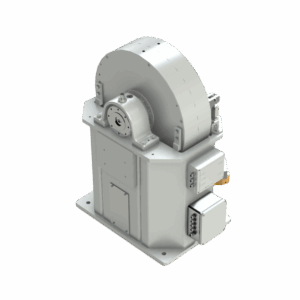

ENORISE Eddy Current Dynamometers are used to test engines in environments where low inertia testing or heat dissipation is required.

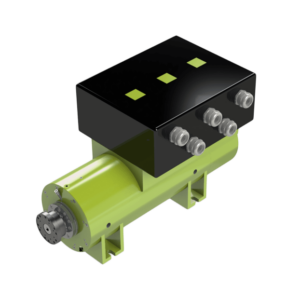

Our electric motor dynamometers specifically designed for electric motor test cells.
