DYNACRAFT™ - Dynamometers for E-Motor Test Cells
Our electric motor dynamometers, DYNACRAFT E-Motor, are specifically designed for electric motor test cells. Thanks to their advanced technology, these dynamometers allow the performance, energy efficiency and dynamic characteristics of electric motors to be accurately tested in real test environments.
Features
- Excellent reliability
- High quality of measurement
- Integrated electrical and mechanical safety monitoring (motor winding and bearings)
- Technology:
- Permanent magnet
- Water cooling
- Torquemeter
- Frequency converter
Specifications
| Rated power (kW) | Rated Torque (N.m) | Base Speed (rpm) | Max. Speed (rpm) | Inertia (kg.m²) | Voltage(V) | Current (A) | |
| DX250 | 250 | 400 | 6,000 | 25,000 | 0.066 | 460 | 490 |
| DX300 | 300 | 600 | 4,780 | 21,000 | 0.129 | 495 | 554 |
| DX400 | 400 | 500 | 7,700 | 24,000 | 0.130 | 460 | 1,207 |
| DX500 | 500 | 600 | 8,000 | 20,000 | 0.139 | 460 | 1,554 |
Related solutions

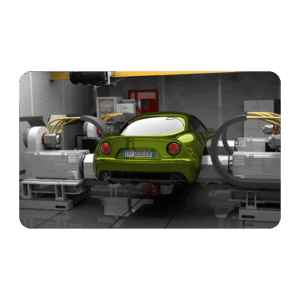

ENORISE DYNACRAFT™ – Wheels are ideal for testing powertrains, axle motors (e-axles) and transmissions under realistic conditions.
